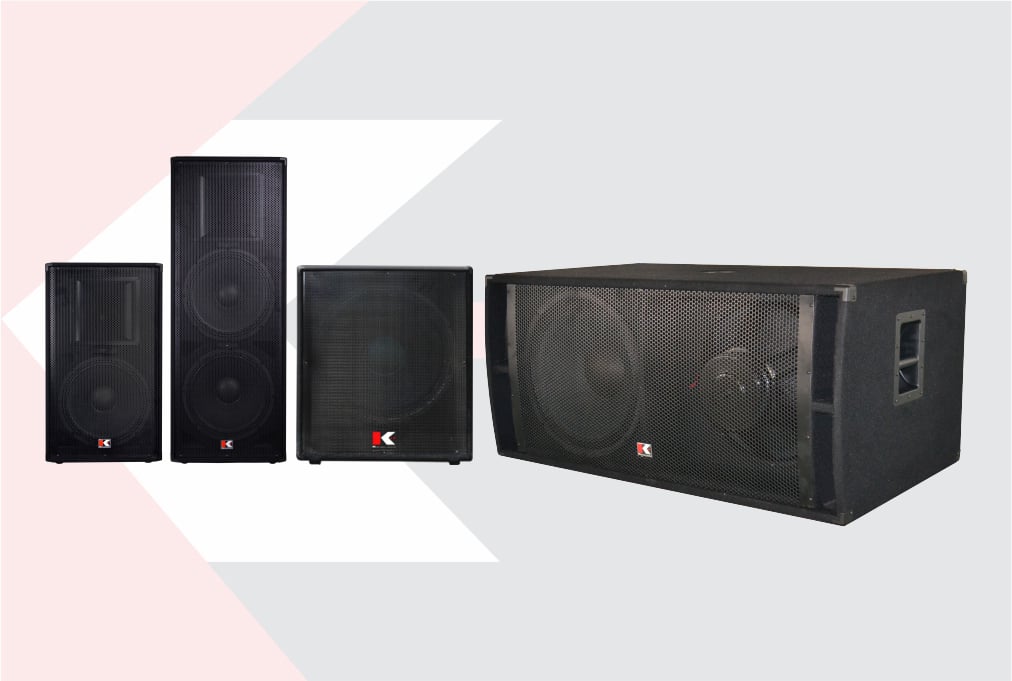

KV115 / KV215 /
KV118 SUB / KV218 SUB
2-Way Vented Passive Speakers & Subwoofers
Carpet finish, Wood cabinets, metal grille, rubber feet, two handles
Carpet finish, Wood cabinets, metal grille, rubber feet, two handles
| Model | KV115 | KV215 |
|---|---|---|
| System Type | 2 way Passive Speaker | 2 way Passive Speaker |
| Power | 350W Continuous / 700W Program / 1500W Peak | 500W Continuous / 1000W Program / 2000W Peak |
| LF Transducer | 15” Woofer, 2.5" Voice Coil | 2 x 15” Woofer, 2.5" Voice Coil |
| HF Transducer | Driver 1” Exit with 1.75” Voice Coil | Driver 1” Exit with 1.75” Voice Coil |
| Frequency Response | 40Hz - 19KHz | 40Hz - 19KHz |
| Dispersion | 90˚ x 60˚ | 90˚ x 60˚ |
| Max SPL | 120dB | 124dB |
| Impedance | 8 Ohms | 4 Ohms |
| Connectors | 2 x SPK Type | 2 x SPK Type |
| Model | KV118 Sub | KV218 Sub |
|---|---|---|
| System Type | Passive Vented Subwoofer | Passive Vented Subwoofer |
| Power Program | 450W | 700W |
| Power Peak | 900W | 1400W |
| Max SPL | 125dB | - |
| LF Transducer | 18” Woofer, 3” Voice Coil | 2 x 18” Woofers, 3” Voice Coil |
| Frequency Response | 33Hz - 110Hz | - |
| Impedance | 8 Ohms | 8 Ohms |
| Connectors | 2 x SPK / 2 x 1/4” Phone Jack | - |
| Dimensions (WxHxD) | 585 x 705 x 715 mm | - |
| Weight | 31Kg | - |
