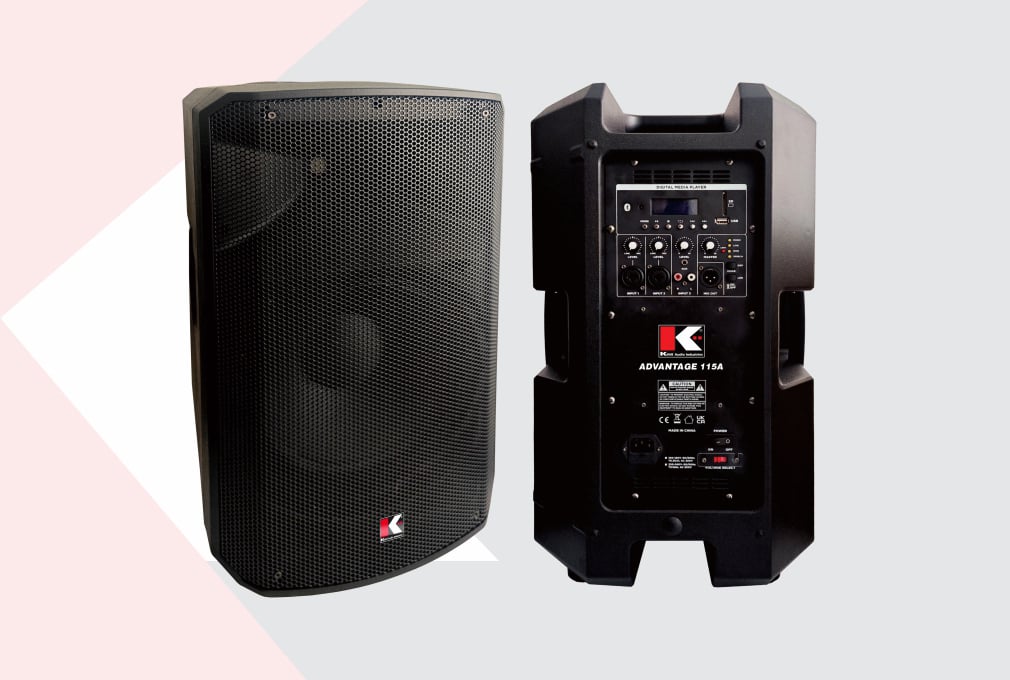

Advantage 115A
Active PA Speaker with DSP and Bluetooth
Injection-Molded Polypropylene, Multi-Angle for Main or Monitor Applications,
Metal Grille, Rubber feet, 3 x Handles (Both Side and Top)
Injection-Molded Polypropylene, Multi-Angle for Main or Monitor Applications,
Metal Grille, Rubber feet, 3 x Handles (Both Side and Top)
| System Type | 2-Way Active Plastic Loudspeaker |
|---|---|
| Power System | Class D SMPS (Bi-AMP, LF 170W / RMS+HF 30W/RMS), 800W Peak |
| Continuous Power | 200W |
| Program Power | 400W |
| LF Transducer | 15" (381mm) Woofer / 2" (51mm) voice coil, 170W / 4 Ohm, Ferrite |
| HF Transducer | 1" (25mm) compression driver, 1" (25mm) voice coil |
| Crossover Frequency | 2.8KHz |
| Max SPL | 121dB (Peak), 94dB (Continuous) (dB-SPL@1m) |
| Frequency Response | 60Hz-20KHz (-3dB) |
| Frequency Range | 55Hz-20KHz (-10dB) |
| Horn Coverage HºxVº | 90º horizontal x 60º Vertical (Nominal) |
| Connectors | INPUT 1/2 - Mic with XLR x 1 / lNPUT 3 - RCA x 1 & 3.5 jack x 1 / XLR Mix Output |
| USB Player | With USB / MP3 Player, Bluetooth |
| Controls | Input 1 & 3 and Master Volume Control |
| Indicators | Power ON with White LED / Clip Limiter with Red LED |
| Protection | Thermal / Overload / Analog Limiter / Compressor |
| Enclosure | Injection-Molded Polypropylene, Multi-Angle for Main or Monitor Applications, Metal Grille, Rubber feet, 3 x Handles (Both Side and Top) |
| Mounting | 36mm Standard Pole-Mount / M8 x 3pcs Flying Points (Optional), wedge Monitor |
| Dimensions (HxWxD) | 685 x 418 x 379mm |
| Net Weight | 13.9 Kg |
